Zewnętrzne sensory EDS2 automatic-water-drain
EDS2 automatic-water-drain - 402402
EDS2 automatic drain module
Optional module for the smart memo to automatically perform pressure drop tests and
pressure reduction during water pressure tests. The EDS2 automatic drain is connected directly
to the test head HANS with an integrated hose piece. On the outlet side, a suitable EDS2-V
must be connected to the EDS2 automatic pressure release. The automatic pressure release
only works in combination with an EDS2-V for digital recording of the water volume!
The automatic drain is currently supported in the following processes:
W 400-2: contraction procedure, standard procedure, infuence-minimized standard procedure
W 101: contraction procedure, standard procedure
EN 805: contraction procedure, standard procedure
Mechanical connections:
- hose connection with nipple series 5000 on the inlet side
- on the outlet side coupling Series 5000
- bracket for fixing to the test stand pipe
Electrical connections:
- 1x socket B11 on the inlet side (power supply via smart memo)
- on the outlet side 3x connector B11 for direct connection of further EDS2 sensors (no
additional T-pieces necessary)
max. pressure 30 bar
max. flow 75 liters/minute
Afiliacja artykułu:
Option DVGW W 400-2
Menu-driven pressure test procedures for water pipes according to German DVGW W 400-2
- Contraction procedure
- Accelerated normal procedure
- Normal procedure
- Influence-minimized normal procedure
Option EN 805
Menu-driven test procedures for pressure tests on water pipes according to rules and regulations of EN 805 (Europe):
- Contraction procedure
- Normal procedure

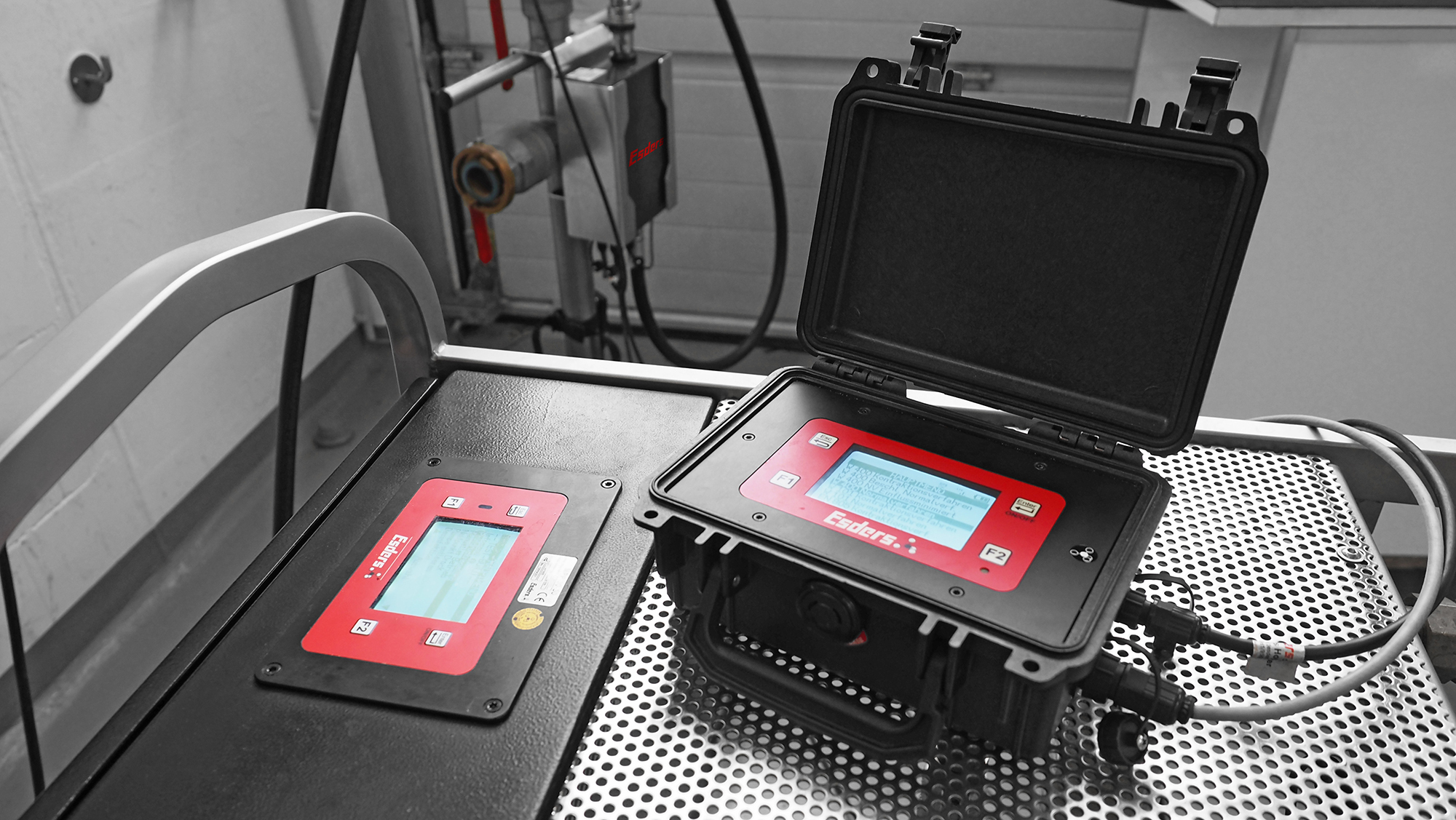

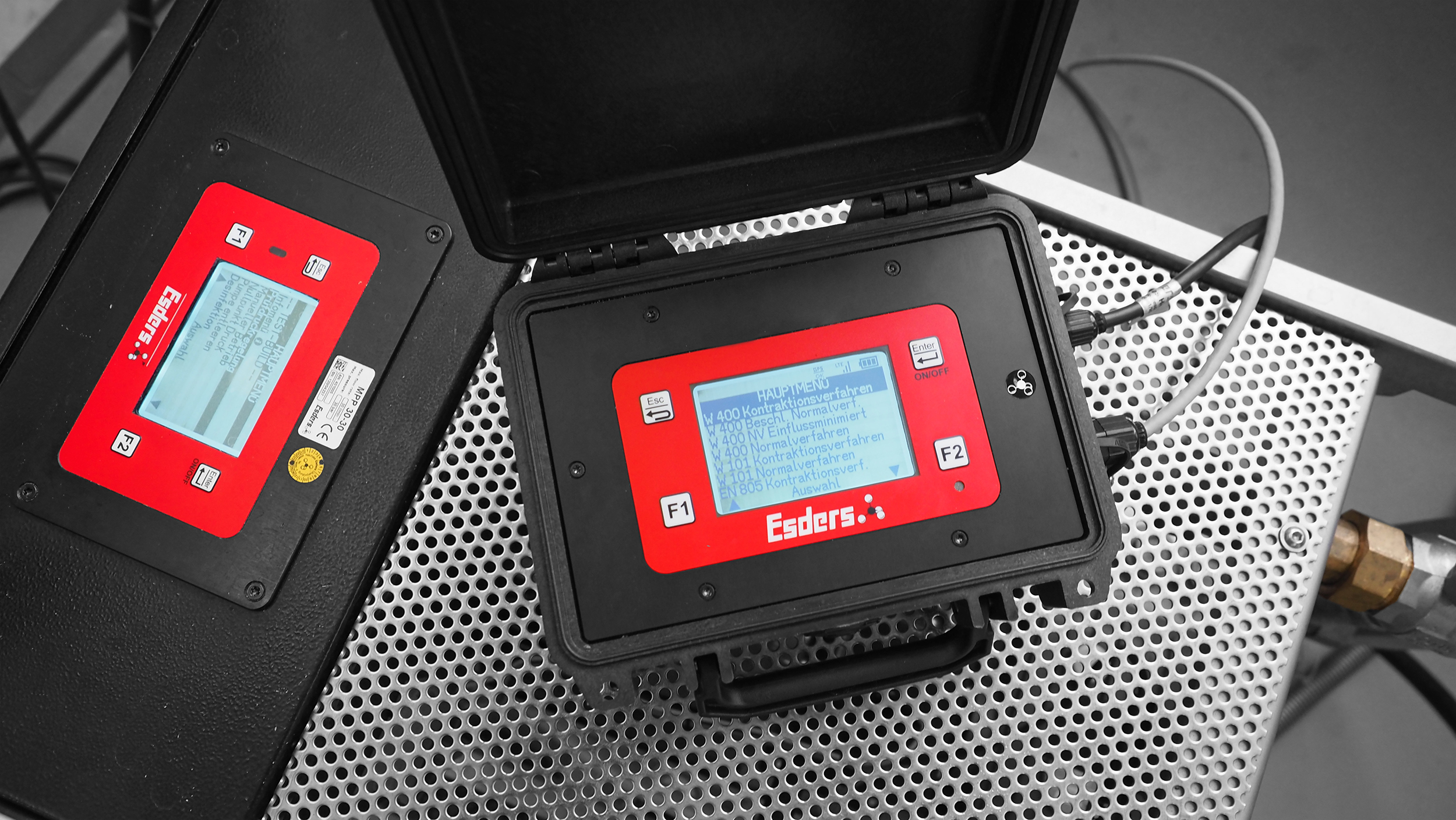

smart memo
Elektroniczny rejestrator ciśnieniowy do testów ciśnieniowych
z możliwością podłączenia do 5 zewnętrznych czujników ciśnienia lub temperatury.
- procedury testowe są oparte na menu i można je przeprowadzić za pomocą
prostego wprowadzenia danych do okna dialogowego
- w zestawie dowolnie programowalny test ciśnieniowy
- opcjonalne sekwencje testowe do badań wodoszczelności i gazoszczelności
- możliwe jest późniejsze dodanie sekwencji testowych
- duży, podświetlany wyświetlacz, łatwy do odczytania nawet przy bezpośrednim świetle
słonecznym
-Wprowadzanie danych i podpis za pomocą wyświetlacza dotykowego i gumowych
przycisków
- W zestawie rysik do wyświetlacza dotykowego
- Pamięć danych na setki pomiarów, w zależności od
sekwencja testowa
- Komunikacja przez Bluetooth w celu aktualizacji, transmisji danych i korzystania z drukarki
- moduł LTE / GPS (opcjonalny)
- solidna obudowa (IP 67)
- Czas pracy około 200 godzin, dłużej z zewnętrznym zasilaczem
Wymiary: 220 x 90 x 168 mm
Waga: około 1450 g
Description
The EDS2 automatic water drain can be used when carrying out water pressure tests and is a necessary component to perform a fully automatic pressure test. It takes over the function of a valve and thus replaces the manual opening and closing of the ball valve during a pressure drop test or during a pressure release.

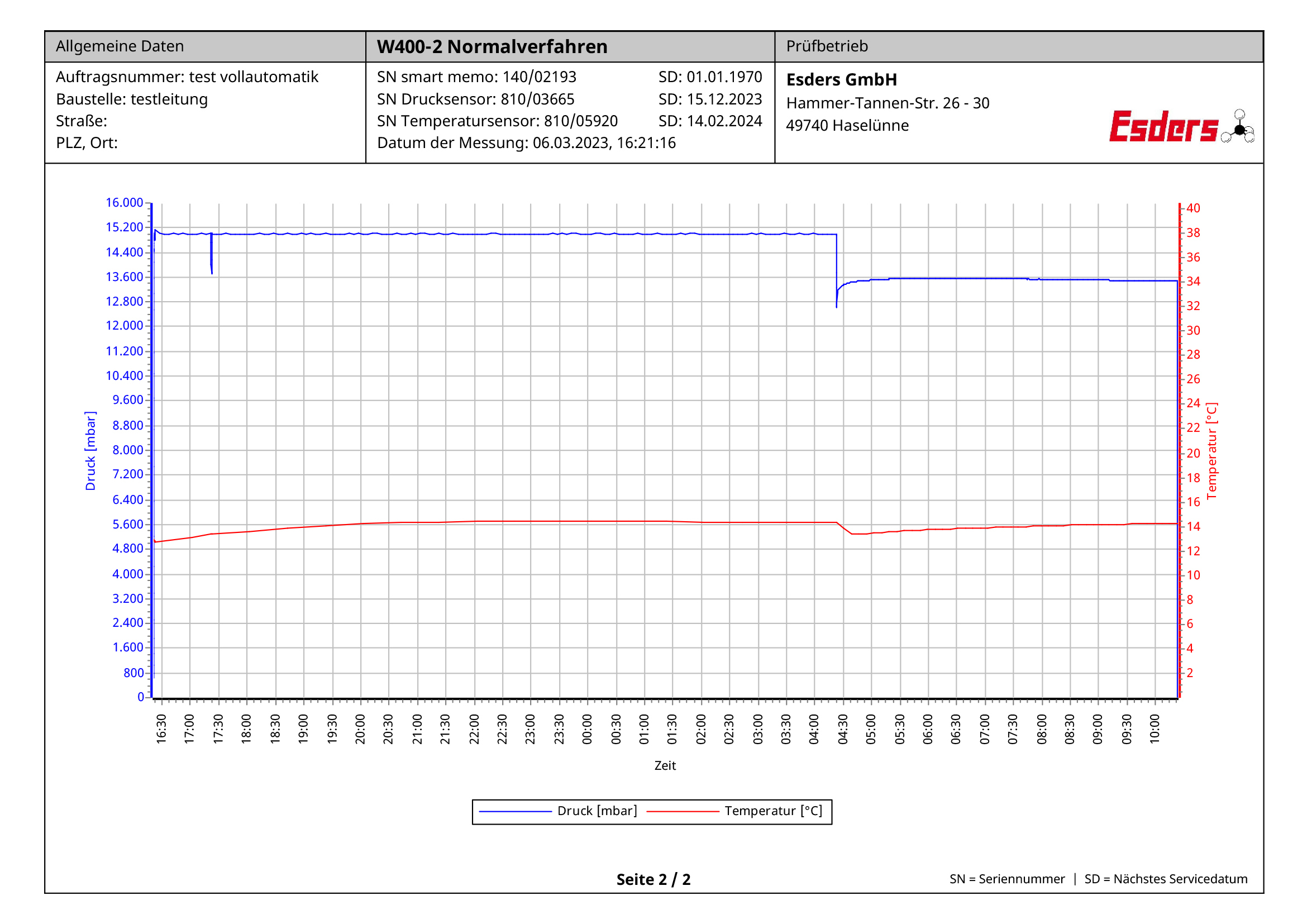

The EDS2 automatic water drain automatically performs all pressure drops provided for in the test sequence, these include:
• Pressure drop test
• Pressure reduction NV for PE pipelines directly before the main test
• Pressure reduction at the end of the test (if phase is activated in menu item settings)
As soon as the EDS2 automatic water drain and a suitable EDS2-V are connected, the pressure drain is performed automatically during the test sequence.
Detailed information on how to carry out a fully automatic pressure test using the contraction method can be found here.
